5 2.0 OEL9M0064-R-E
發布時間：2014-05-28 瀏覽次數：13202
- 詳情介紹
- 技術參數
- 產品應用

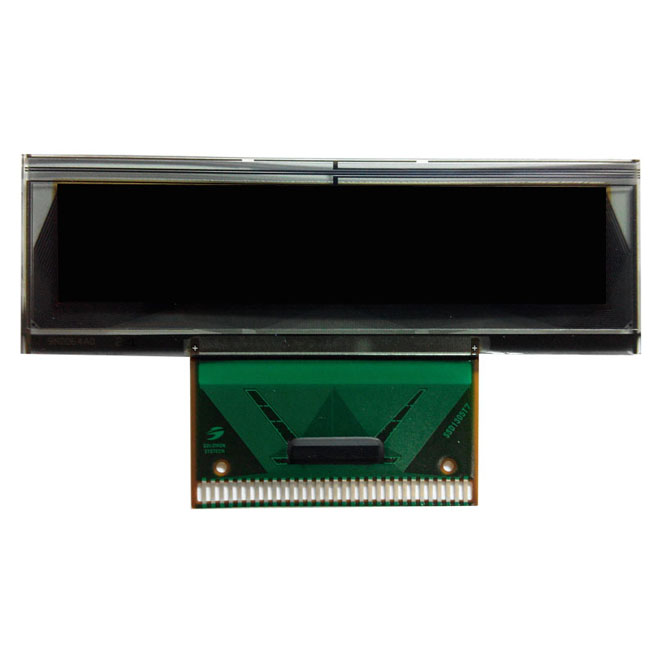

2.0″OEL9M0064-R-E
| Item | Specification |
| Resolution | 128(H) x 32(V) Lines |
| Display Format | 4,096 Pixels |
| Active Area | 50.54 (W) x 10.70(H) mm |
| Outline Dimension (Panel) | 59.00(W) x 18.86(H) mm |
| Pixel Pitch | 0.395(W) x 0.335(H) mm |
| Pixel Size | 0.37(W) x 0.31(H) mm |
| Encapsulation type | Glass Can |
| Display color | R/G/B/Y/W |
| IC package type | TAB for Soldering |
| Thickness | 1.45 mm MAX |
| Weight | < 3.4 g |
| Duty | 1/32 |
| Operating Temperature | -20～70℃ |
| Storage Temperature | -30～80℃ |
