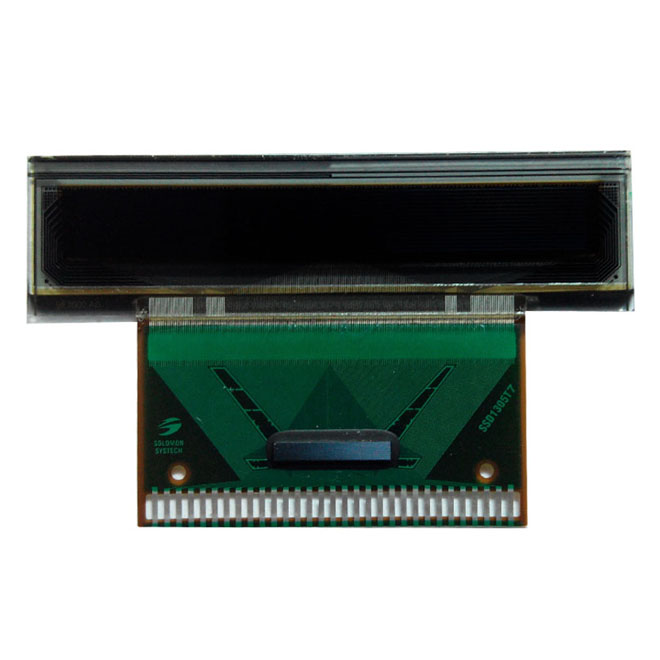

1.45″OEL9M0078-B-E
| Item | Specification |
| Resolution | 132(H) x 16(V) Lines |
| Display Format | 2,112 Pixels |
| Active Area | 36.41(W) x 4.62(H) mm |
| Outline Dimension (Panel) | 43.06(W) x 11.75(H) mm |
| Pixel Pitch | 0.276(W) x 0.29(H) mm |
| Pixel Size | 0.256(W) x 0.27(H) mm |
| Encapsulation type | Glass Can |
| Display color | W/Y/R/G/B |
| IC package type | TAB for Soldering |
| Thickness | 1.45 mm MAX |
| Weight | <1.6g |
| Duty | 1/16 |
| Operating Temperature | -20～70℃ |
| Storage Temperature | -30～80℃ |
