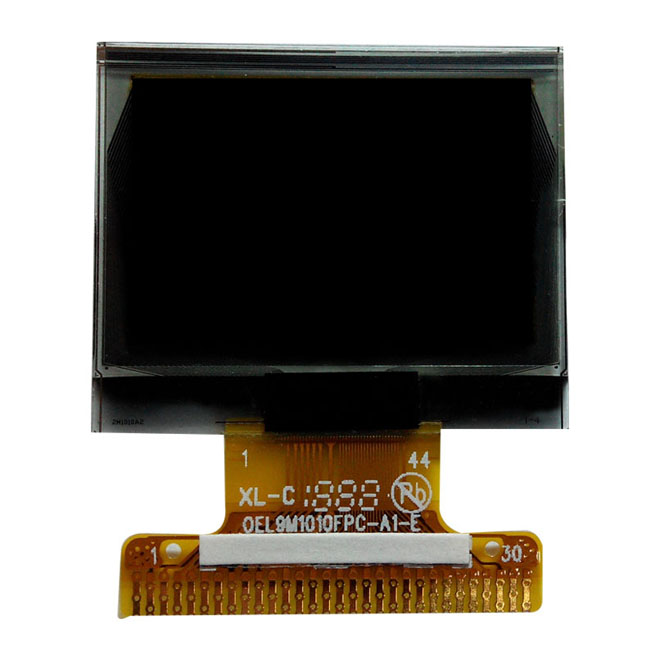

0.95″OEL9M1010-W-E
| Item | Specification |
| Resolution | 96(H) x 64(V) Lines |
| Display Format | 6,016Pixels |
| Active Area | 19.95(W) x 13.42(H) mm |
| Outline Dimension (Panel) | 24.90(W) x 20.53(H) mm |
| Pixel Pitch | 0.208(W) x 0.210(H) mm |
| Pixel Size | 0.188(W) x 0.190(H) mm |
| Encapsulation type | Glass Can |
| Display color | R / G / B / Y / W |
| IC package type | COG |
| Thickness | 1.45 mm MAX |
| Weight | < 1.5 g |
| Duty | 1/64 |
| Operating Temperature | -20～70℃ |
| Storage Temperature | -30～80℃ |
